Vein Simulator

The VeinSimulator characterizes the geometric and grade uncertainty of veins and other tabular deposits:

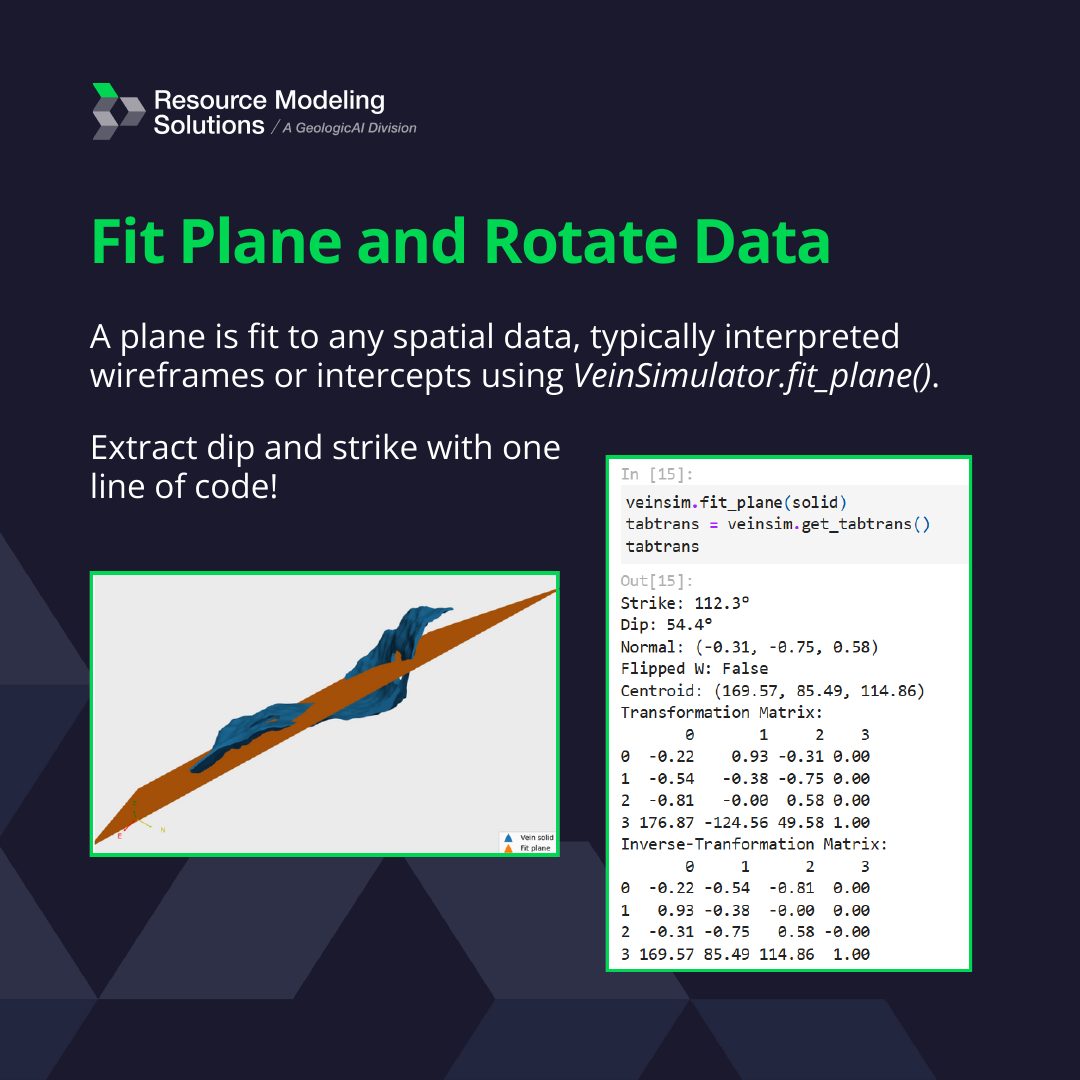

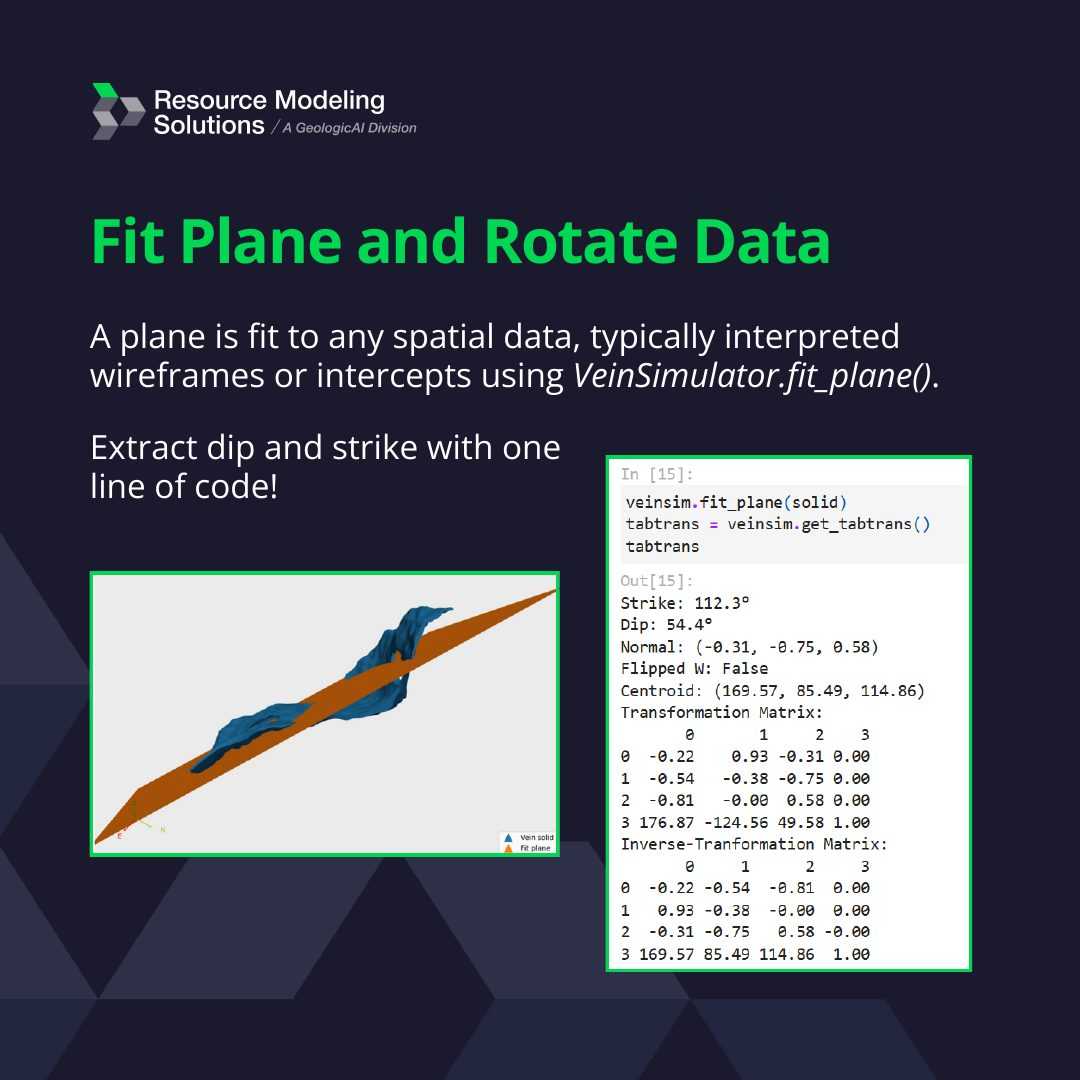

• Fit a plane and rotate the data: fit a plane to intercepts or interpreted wireframes and extract dip and strike with one line of code.

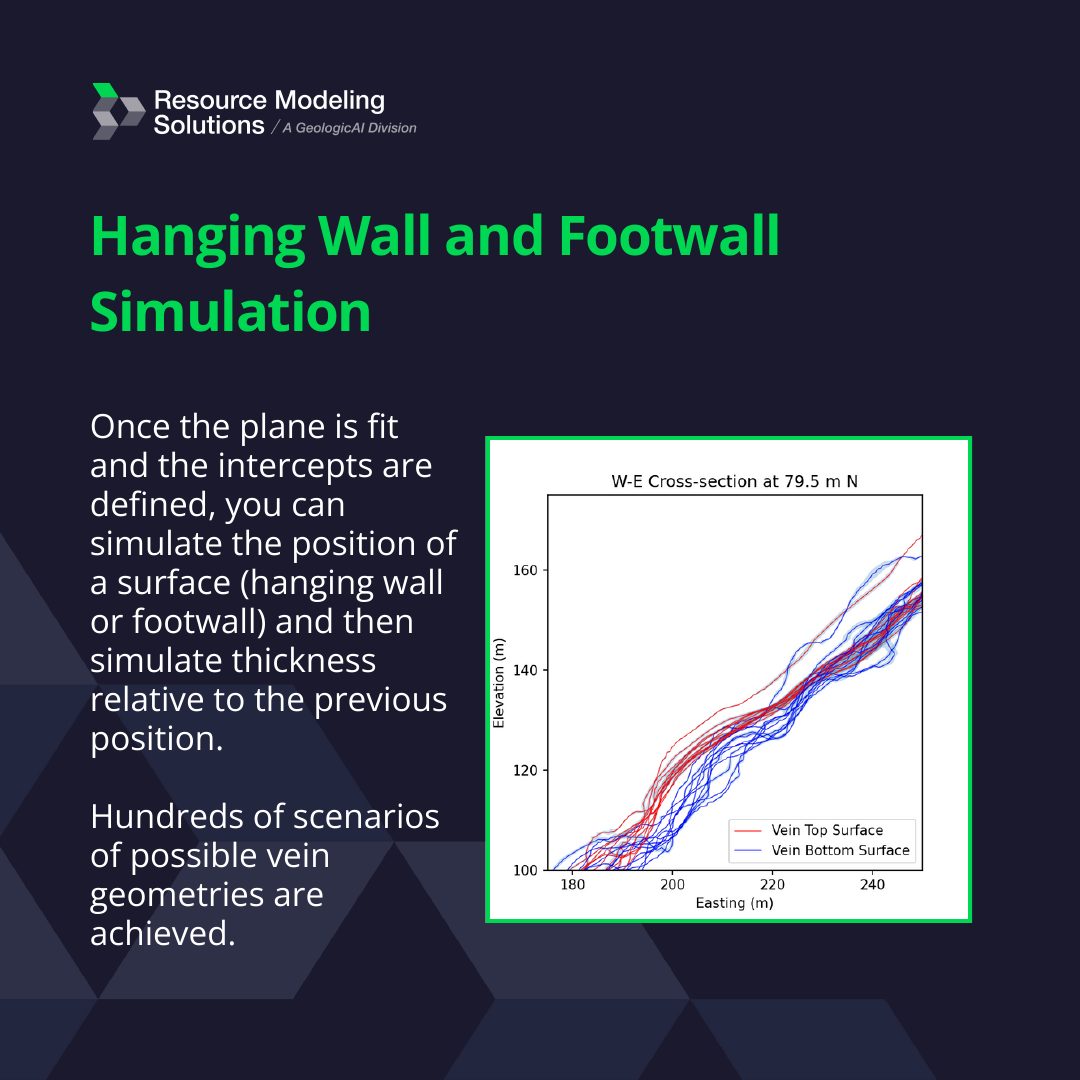

• Hanging wall and footwall simulation: simulate the position of one surface, then the thickness relative to it, for hundreds of possible vein geometries.

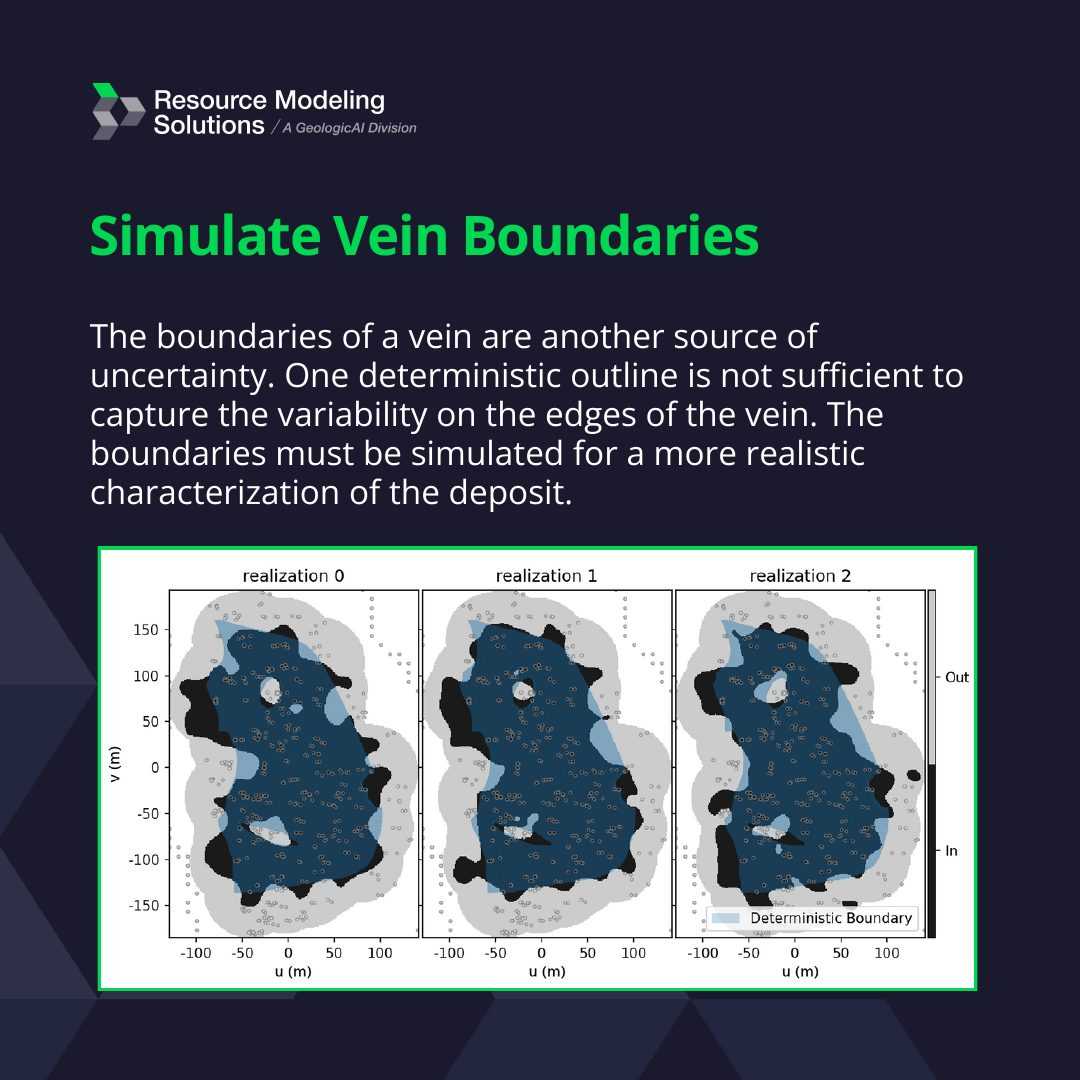

• Simulate vein boundaries: one deterministic outline cannot capture the variability at the edges of a vein, so the boundaries are simulated too.

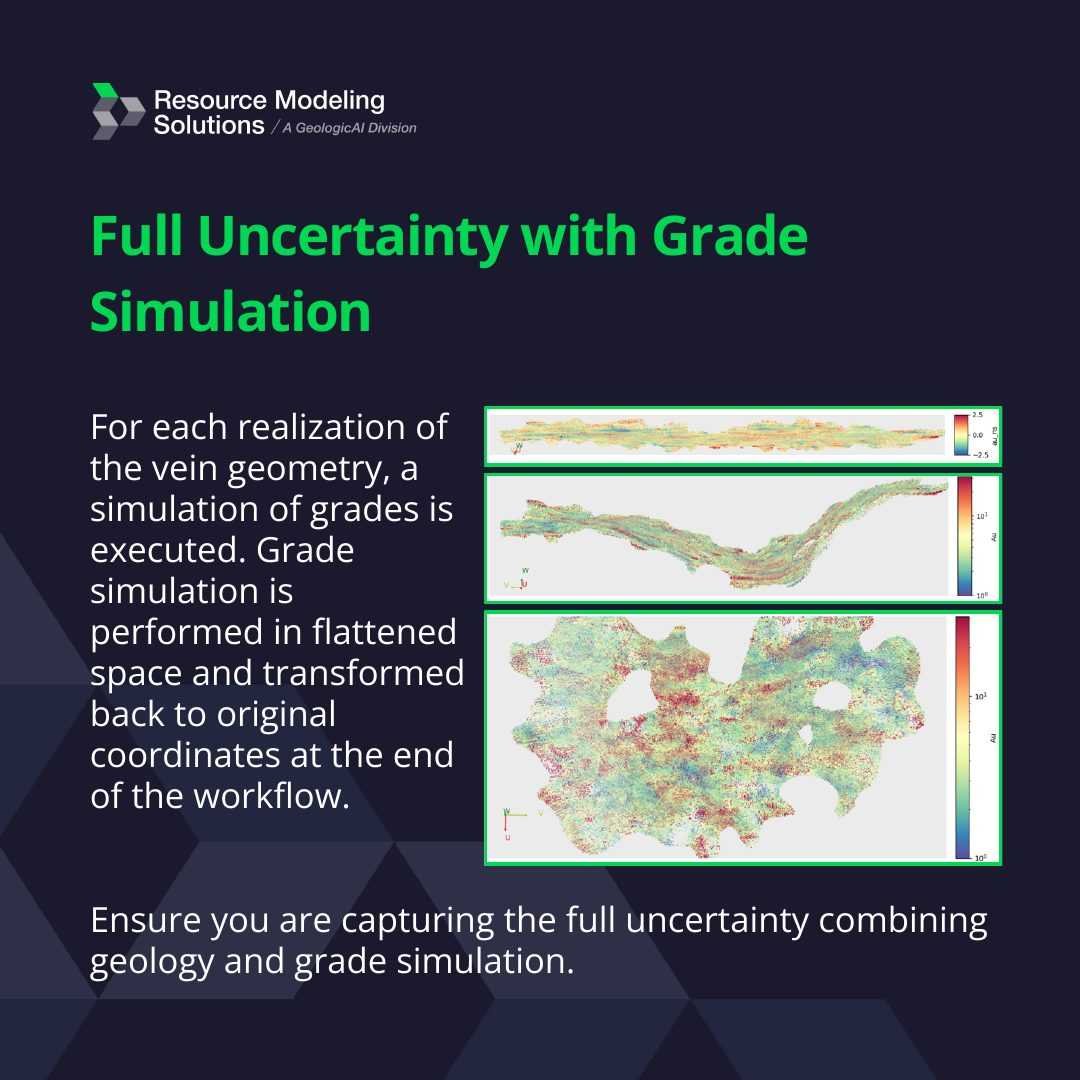

• Grade simulation: grades are simulated in flattened space for each geometry realization, then transformed back to original coordinates.

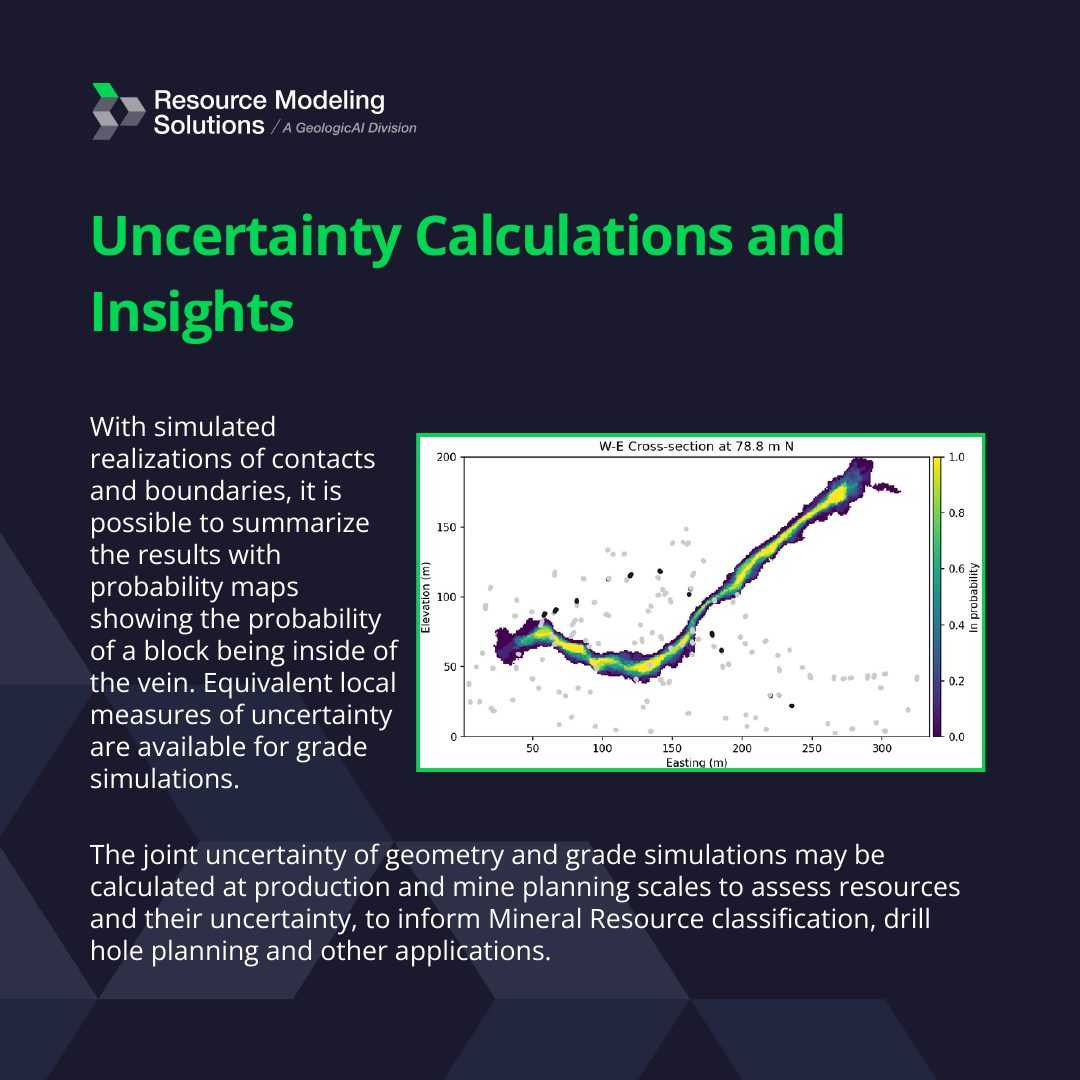

• Uncertainty insights: summarize the probability of each block being inside the vein, with joint geometry and grade uncertainty at production and mine planning scales to inform classification and drill hole planning.

Contact us at contact@resmodsol.com to schedule an RMSP demo.
